Asus GT730-2GD3-BRK-EVO 90YV0HN1-M0NA00

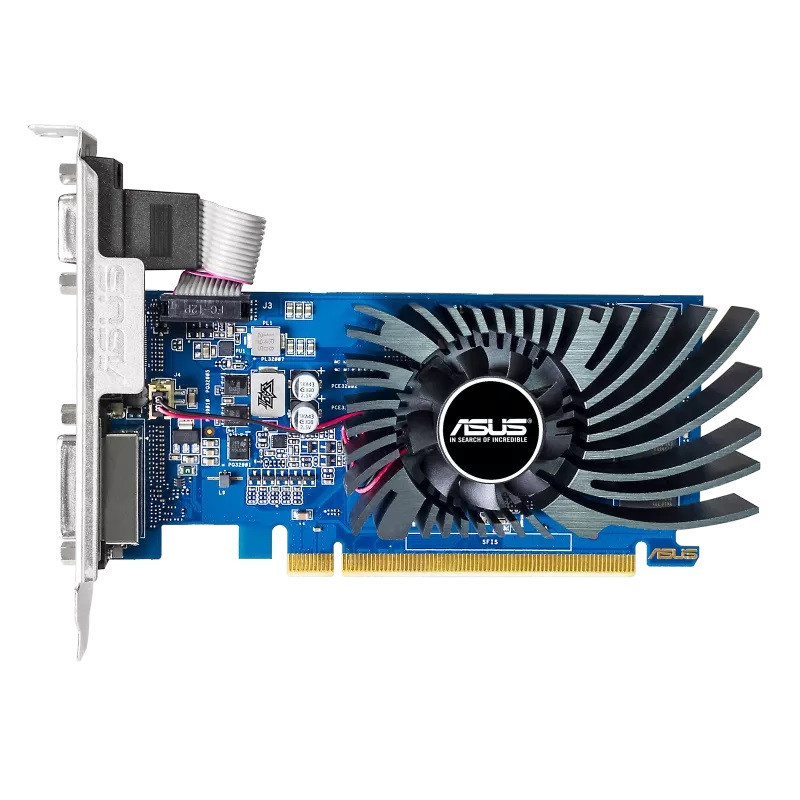

ASUS GeForce GT 730 2GB DDR3 BRK EVO

ASUS GeForce GT 730 2GB DDR3 BRK EVO low-profile graphics card for HTPC builds

• Single-slot Design fits in small chassis and leaves room for additional PCIe devices.
• Supports 3 displays – connect up to 3 monitors for enhanced multitasking.
• Auto-Extreme Technology uses automation to enhance reliability.?
• GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

Model

ASUS GeForce GT 730 2GB DDR3 BRK EVO

Graphic Engine

NVIDIA GeForce GT 730

Bus Standard

PCI Express 2.0

OpenGL

OpenGL4.6

Video Memory

2GB DDR3

Engine Clock

OC mode : 927 MHz(Boost clock)
Gaming mode : 902 MHz (Boost Clock)

CUDA Core

384

Memory Speed

1800 MHz

Memory Interface

64-bit

Resolution

Digital Max Resolution 3840 x 2160

Interface

Yes x 1 (Single-link DVI-D)
Yes x 1 (D-Sub)
Yes x 1 (Native HDMI 1.4b)
HDCP Support Yes (1.4)

Maximum Display Support

3

NVlink/ Crossfire Support

No

Accessories

1 x Speedsetup Manual
2 x 1-slot LP bracket

Software

ASUS GPU Tweak II & Drivers: please download all software from the support site.

Dimensions

155 x 69 x 20 mm
6.1 x 2.7 x 0.79 inches

Recommended PSU

300W

Slot

1 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
