TECHNICAL SPECIFICATIONS
Socket Type | Intel LGA1700 |
Dimensions (W x D x H) | 87.2 x 85.2 x 21.8 mm |
Heatsink Material | Aluminium |
Max TDP Support | 35W TDP |

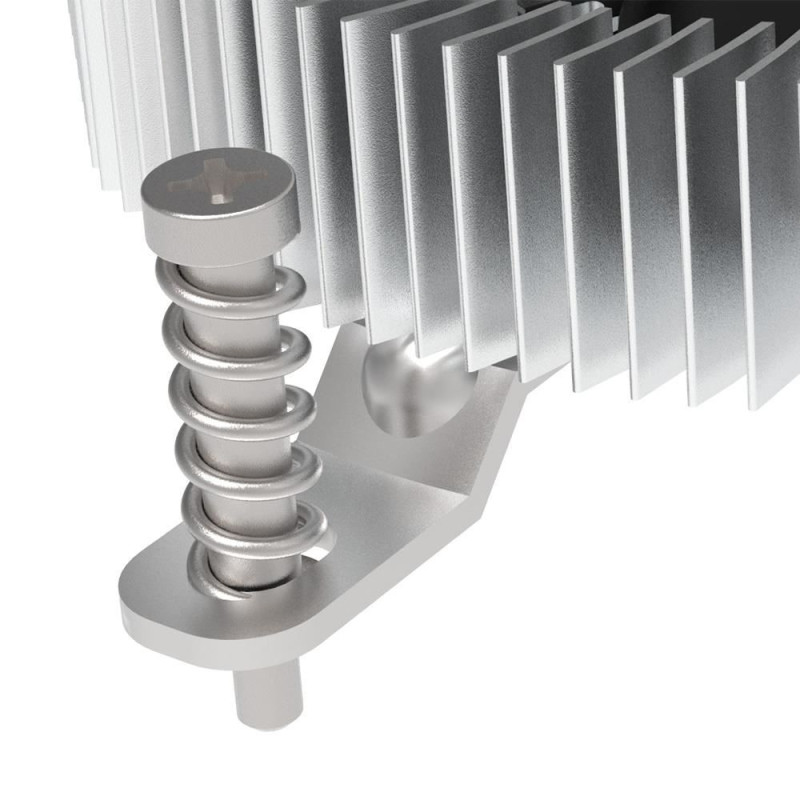

Installation | Metal screws and retention plate |
Fan Speed | 600-3000 RPM (PWM controlled) |
Max Airflow | 23.45 CFM |
Max Air Pressure | 1.81 mm-H20 |
Max Noise Level | 30.75 dB(A) |
Voltage Rating / Current Rating | 12V DC / 0.19A |
Bearing Type | Enter Bearing (EBR) |
Fan Life Expectancy | 40,000 hours / 25°C |
Fan Connector | 4-Pin PWM |
