TECHNICAL SPECIFICATIONS
| Socket Type | Intel LGA1700 |
| Cooler Dimension | 87.2 x 85.2 x 26.92 mm |
| Heatsink Material | Aluminium |
| Thermal Design Point (TDP) Support | 35W |
| Weight | 165.5 g |

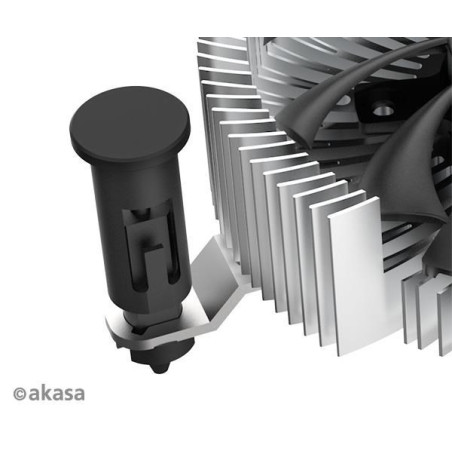

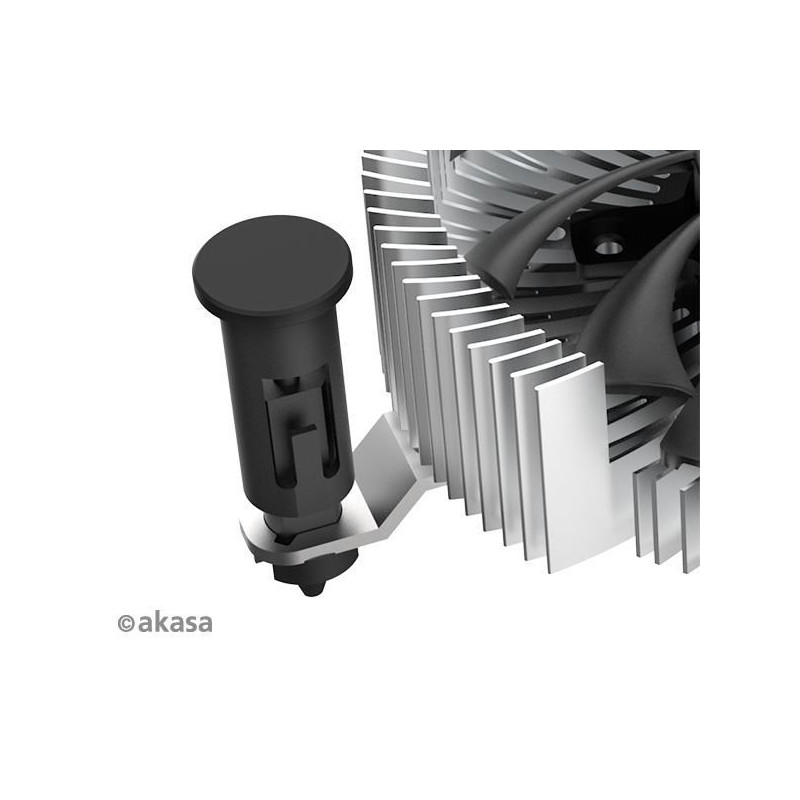

| Installation | Push Pins |
| Fan Specification | |
| Dimension | 75 x 75 x 10mm |
| Fan Speed | 600 – 3000 RPM |
| Max Airflow | 23.45 CFM (ft/min) |
| Max Air Pressure | 1.81 mm-H2O |
| Noise Level | 30.75 dB(A) |
| Current Rating for Fan | 0.19A |
| Voltage Rating for Fan | 12V DC |
| Bearing Type | EBR (Enter Bearing) |
| Fan Life Expectancy | 40,000 hours |
| Fan Connector | 4-pin PWM |
