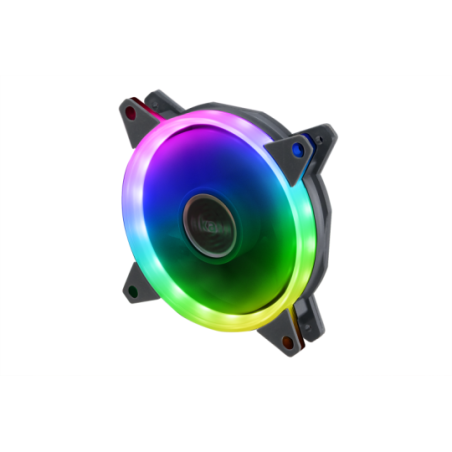

VEGAS AR7 - 12cm motherboard control LED fan
TECHNICAL SPECIFICATIONS
| Application | PC case |
| Dimensions | 120 X 120 X 25mm |
| Fan speed | 1500 RPM |
| Max airflow | 35.2 CFM |
| Fan air pressure | 1.04 mm H2O (max) |
| Noise level | 23.8 dB(A) |
| Current rating for LED | 0.6A |
| Voltage rating for LED | 5V DC |
| Current rating for Fan | 0.15A |
| Voltage rating for Fan | 12V DC |
| Bearing | FDB |
| Fan life expectancy | 40,000 hours |
| Connector | Fan: 3-pin LED: 3-pin or 4-pin digital addressable LED connector only |
| Product code | AK-FN099 |
